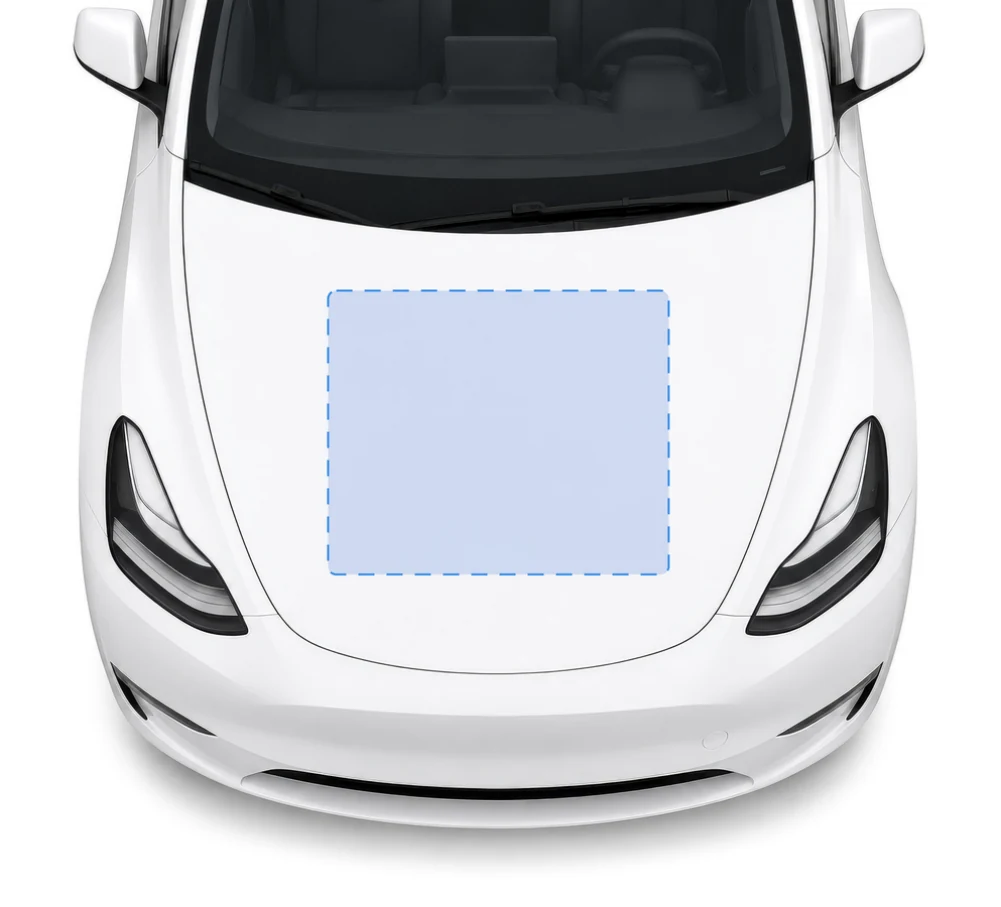

01
Hood sticker
Max design area
30" W x 25" H
(762mm x 635mm)
Use the full area or create any custom die-cut shape within it.
2026 edition
Sticker design guides
Everything your creative team needs to build artwork that prints correctly, installs cleanly, and looks its best on every vehicle in the fleet — max design areas, file setup, materials, and templates for both Stic formats.
Stic Reach
Modular Placement System. Required: 1 hood sticker, 1 front door sticker, and 1 rear door sticker.
Stic Elite
Cross-door Placement System. Required: 1 hood sticker and 1 cross-door sticker.
Specifications
Placement and max design areas.
Every sticker may use the full design area or any custom die-cut shape inside it.
Stic Reach — Modular Placement System
Stic Reach uses modular sticker artwork across the hood, front door, and rear door.
Required: 1 hood sticker, 1 front door sticker, and 1 rear door sticker.
02

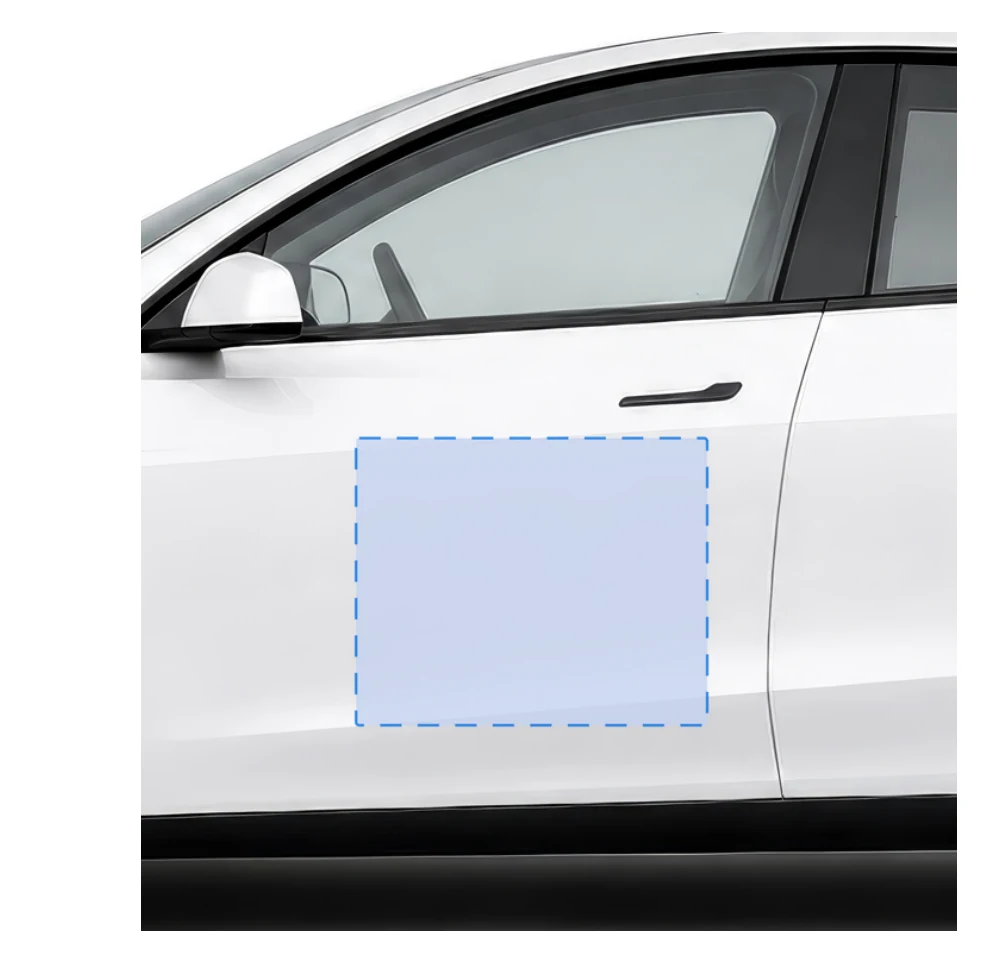

Front door sticker
(Driver or passenger side)
Max design area
22" W x 18" H
(559mm x 457mm)
Use the full area or create any custom die-cut shape within it.
03

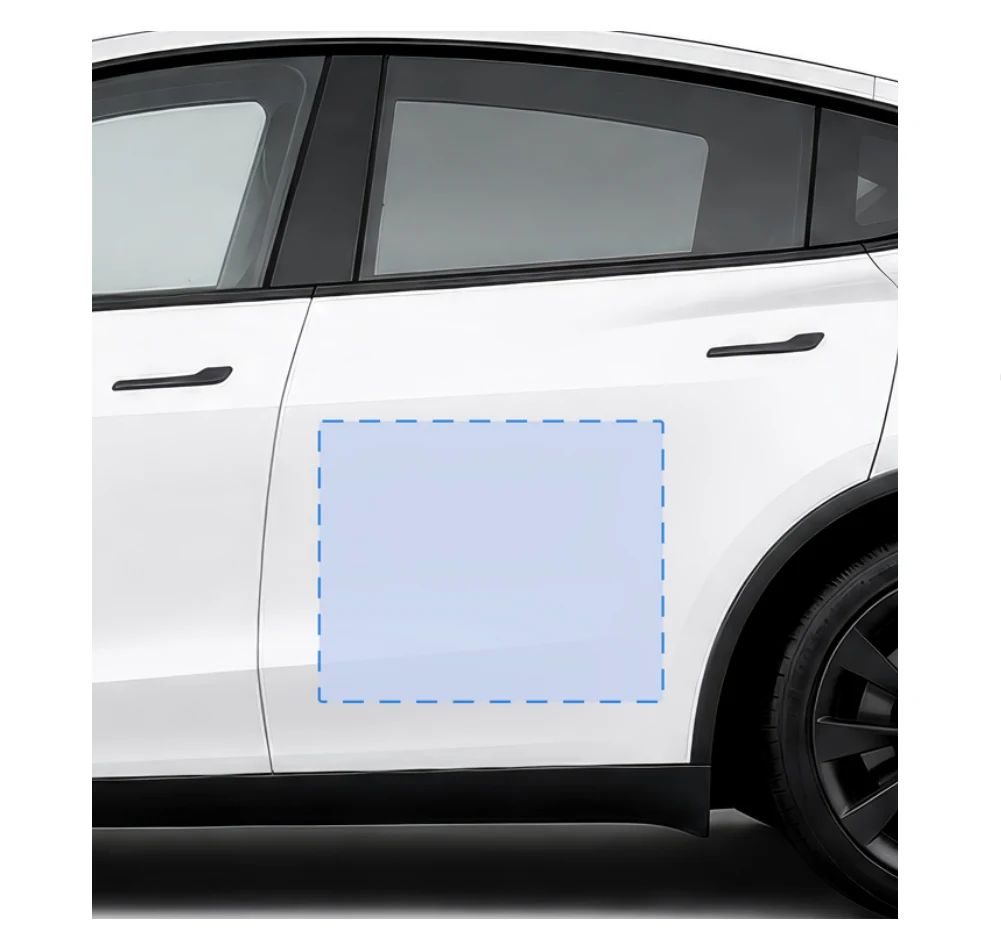

Rear door sticker
(Driver or passenger side)
Max design area
22" W x 18" H
(559mm x 457mm)
Use the full area or create any custom die-cut shape within it.
Stic Elite — Cross-door Placement System
Stic Elite uses a larger cross-door sticker system for premium vehicle visibility.
Required: 1 hood sticker and 1 cross-door sticker.
01
Hood sticker
Max design area
30" W x 25" H
(762mm x 635mm)
Use the full area or create any custom die-cut shape within it.
02

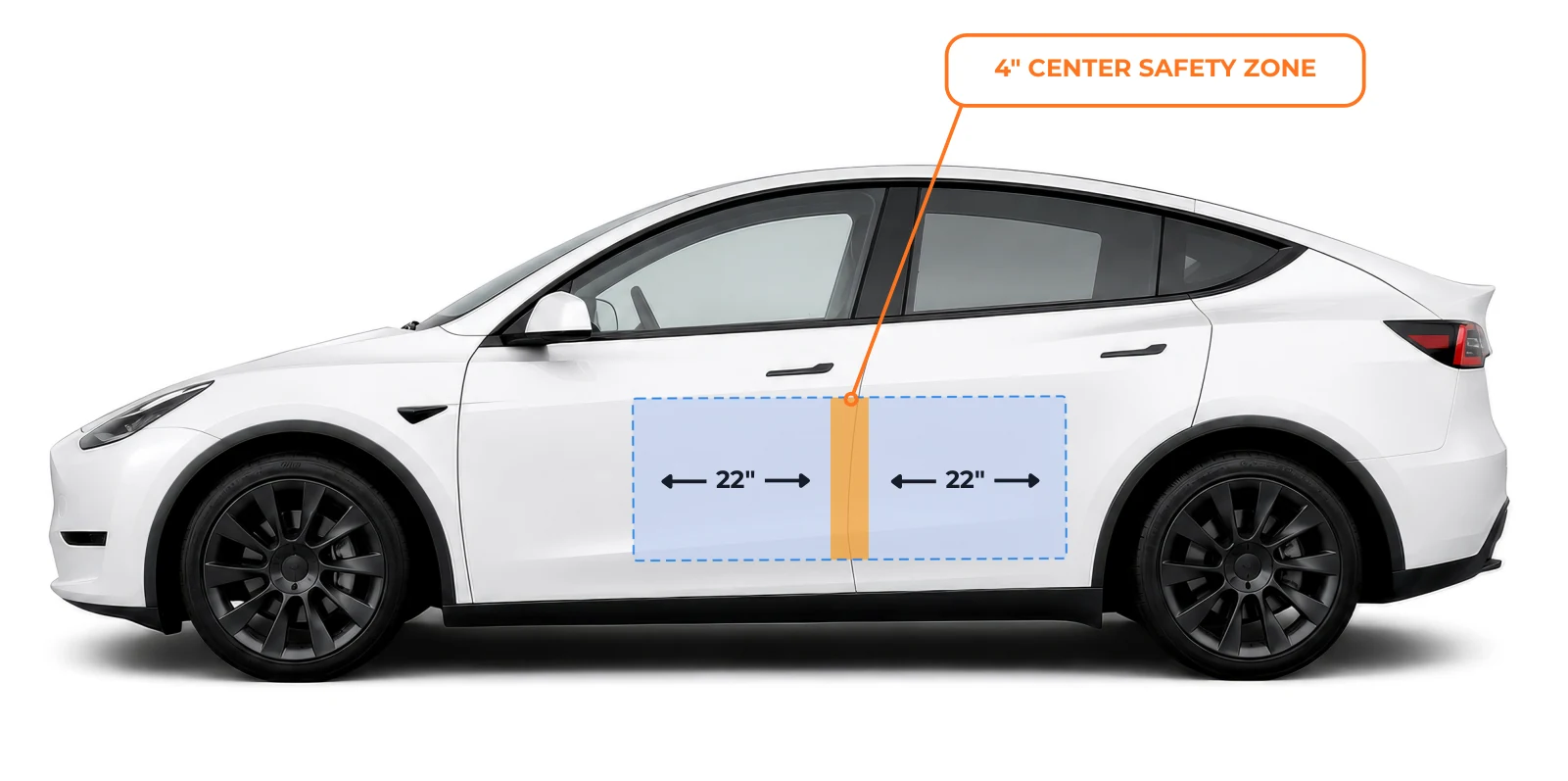

Cross-door sticker
(Driver or passenger side)
Max design area
48" W x 18" H
(1219mm x 457mm)
Use the full area or create any custom die-cut shape within it.
Keep critical content clear of the center 4" seam safety zone
Avoid placing logos, faces, small text, and QR codes in this area.
Artwork setup
- Submit artwork in RGB unless otherwise requested
- Preferred file types: AI, EPS, or PDF
- Embed images and outline fonts
- Vector artwork preferred; raster images should be 300 DPI
- Include standard 1/8" bleed
- Final cut shape must stay within the max design area
Guidelines
Artwork setup & production.
Follow these standards to ensure your artwork prints correctly, installs properly, and looks its best on every vehicle. Stic reviews submitted artwork for size, placement, and production compatibility before print.
01
File setup
- Color mode: RGB
- Resolution: 300 DPI
- Preferred file types: AI, EPS, or PDF
- Fonts: outlined
- Images: embedded or packaged
- Bleed: 1/8" (0.125") on all sides
- Cutline: final sticker shape must remain within the max design area
SVG files are accepted for logo assets only.
02

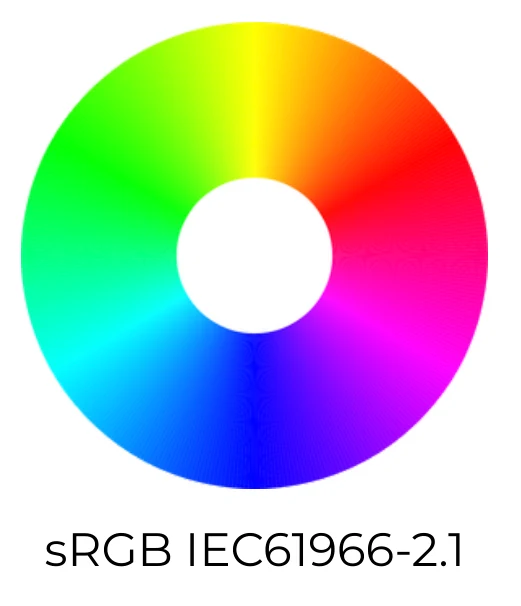

RGB workflow
Stic uses an expanded-color digital print workflow. Please submit artwork in RGB unless otherwise requested.
03
Materials & print specs
| Standard material | 3M™ Controltac™ Print Film 40C-10R White gloss film |
|---|---|
| Finish | Gloss laminated |
| Digital Color | |
| Ink | Eco-solvent |
| Sides | Single-sided |
| Print coverage | Full bleed |
| Cut | Contour cut |
04
Brand colors & print proofs
If your brand has required Pantone, PMS, or spot color targets, include them with your artwork files. Printed proofs or approved color references may also be supplied. Our production team will use them as color references during proofing and print setup.
Final output may vary slightly.
05

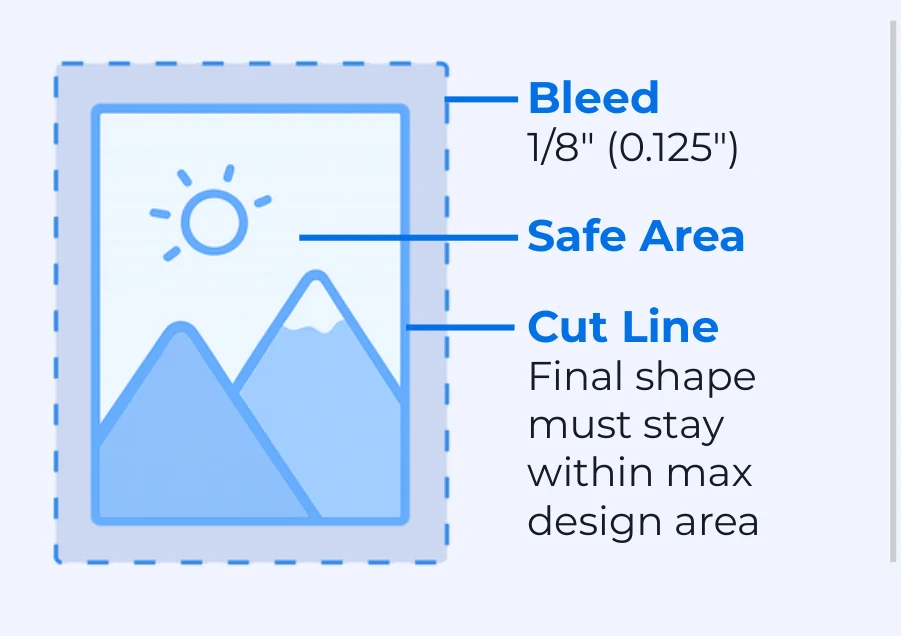

Bleed & cutlines
- Include 1/8" (0.125") bleed on all sides.
- Keep all important text, logos, QR codes, and graphics away from cutline.
- Final sticker shape must remain within the max design area for each format.
06
Production review
Stic reviews submitted artwork for size, placement, and production compatibility before print.
Client creative teams are responsible for final artwork content, spelling, legal copy, logo usage, and brand approvals.
07
Third-party production
If your team or vendor is producing stickers directly, use the specifications in this guide for dimensions, file setup, material specifications, bleed, & laminate requirements.
Non-standard materials, finishes, sizing, or installation methods require Stic approval before production.
References
Approved flat artwork references.
Use these flat art examples as directional references for sticker layout and file setup.
Stic Reach
Example #1
Example #2
Common issues to avoid
Do not extend past max design area.
Avoid custom shapes that exceed the max design area.

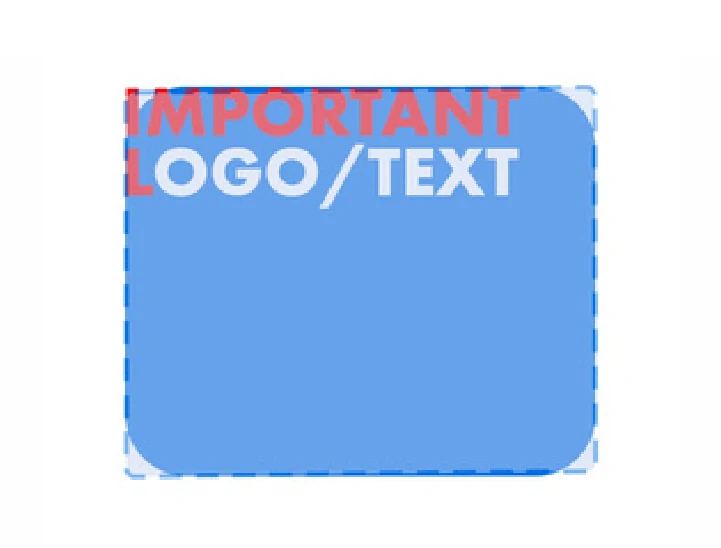

Keep important content away from the cut edges.
Avoid small text or unreadable details.
Stic Elite
Example #1
Example #2
Common issues to avoid
Do not extend past max design area.
Avoid custom shapes that exceed the max design area.
Keep important content away from the cut edges.
Keep critical content out of the 4" center seam area on Elite cross-door stickers.
Resources
Templates & support.
Download the guides
The full 2026 edition of each design guide — specifications, artwork setup and production, flat art examples, and templates — laid out for print and for sharing with an outside creative team or vendor.
- Stic Reach Hood, front door, rear door
- Stic Elite Hood, cross-door
Template kit
One print-ready PDF per placement, each built at its max design area plus 1/8" bleed with the trim box set, and separate layers for the guides, the optional starter shapes, and your artwork.
Stic Reach
- Hood template 30" W x 25" H
- Front door template 22" W x 18" H
- Rear door template 22" W x 18" H
Stic Elite
- Hood template 30" W x 25" H
- Crossdoor template 48" W x 18" H
Submit artwork
Submit final artwork using the campaign upload link provided by your Stic account team. Questions or need support? Contact your account team or email creative@drivestic.com.
Recommended file naming
Brand_Campaign_Placement_v01.ai
- Brand_Reach_Hood_v01.pdf
- Brand_Reach_FrontDoor_v01.pdf
- Brand_Reach_RearDoor_v01.pdf
- Brand_Elite_CrossDoor_v01.pdf
Can we create a custom die-cut shape?
Yes. Final sticker shapes must stay within the max design area.
Should files be RGB or CMYK?
RGB, unless otherwise requested.
Can we provide Pantone colors or printed proofs?
Yes. Include Pantone, PMS, proofs, or approved color references when color matching is important.
Can we produce stickers through our own vendor?
Yes. Follow the specs in this guide. Non-standard materials, finishes, sizing, or installation methods require Stic approval.
